Chamfering Process in Mechanical Design and Manufacturing

Chamfering is a critical process in mechanical design and machining, serving both practical functions and design specification requirements. Its core content is as follows:

I. Three Major Functions of Chamfering

1. Remove burrs from edges to create smooth surfaces and prevent scratches to users.

2. Properly sized chamfers optimize assembly and improve part fitting accuracy.

3. Facilitate stress relief during heat treatment, reduce cracking and deformation, and resolve stress concentration issues.

II. Five Design Principles for Chamfering

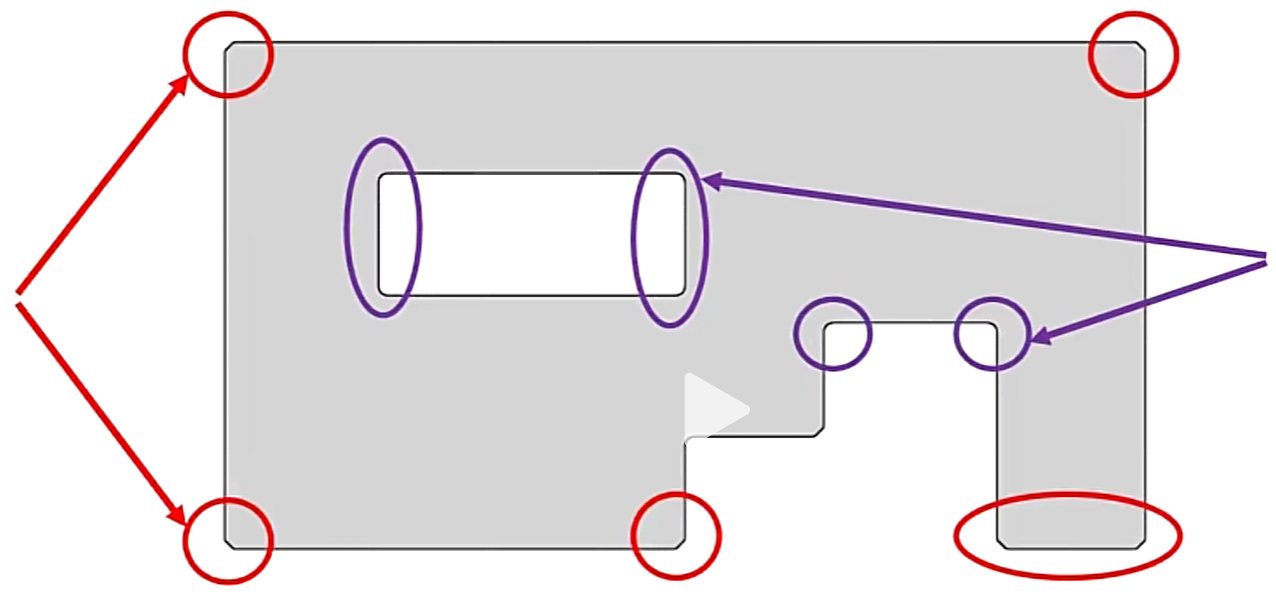

1.Internal Radius & External Chamfer (Machined Parts)

For rotary tool machining, internal features use fillets (rounded corners) while external features use chamfers. Maintain consistent fillet and chamfer sizes for identical features to minimize tool changes.

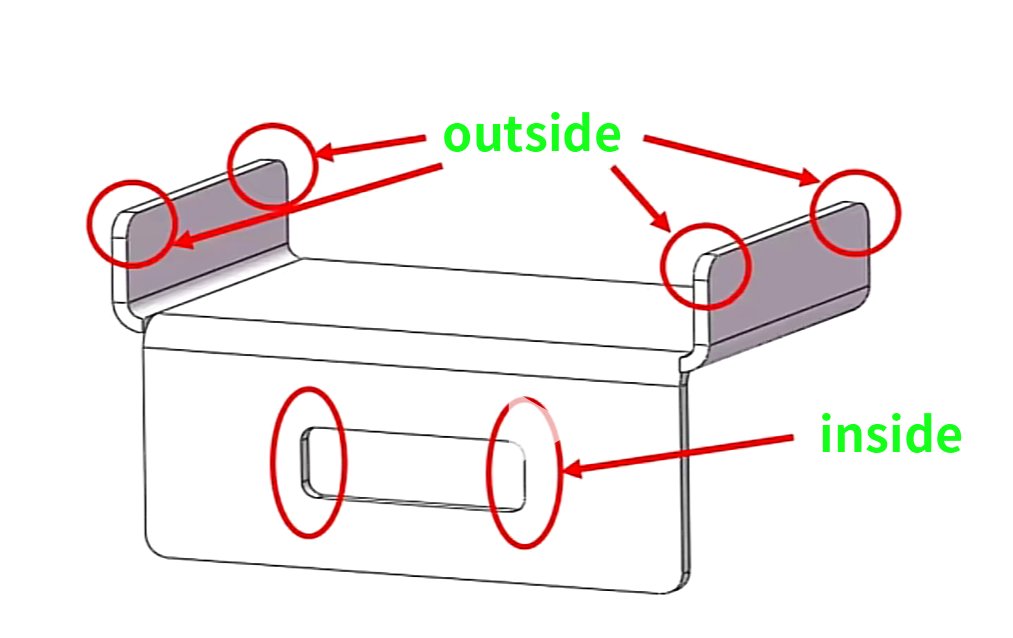

   2.Internal & External Radius (Sheet Metal Parts)

For laser processing, both internal and external features use rounded corners, typically with a radius R = 2–5 mm.

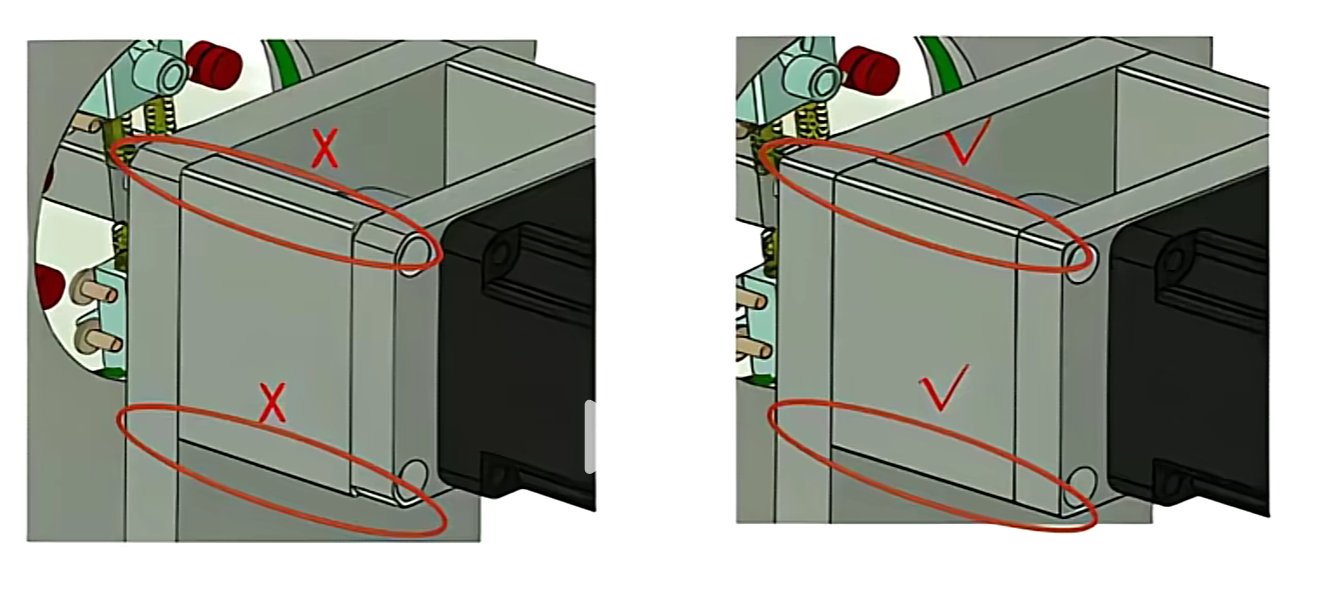

3.Overall Neatness & Aesthetics

Ensure clean assembly without sharp edges. The default unnoted chamfer is C0.5. Design should consider assembly relationships.Note: Select appropriate sizes based on part dimensions. Chamfering is strictly prohibited on cutting edges of cutting tools.

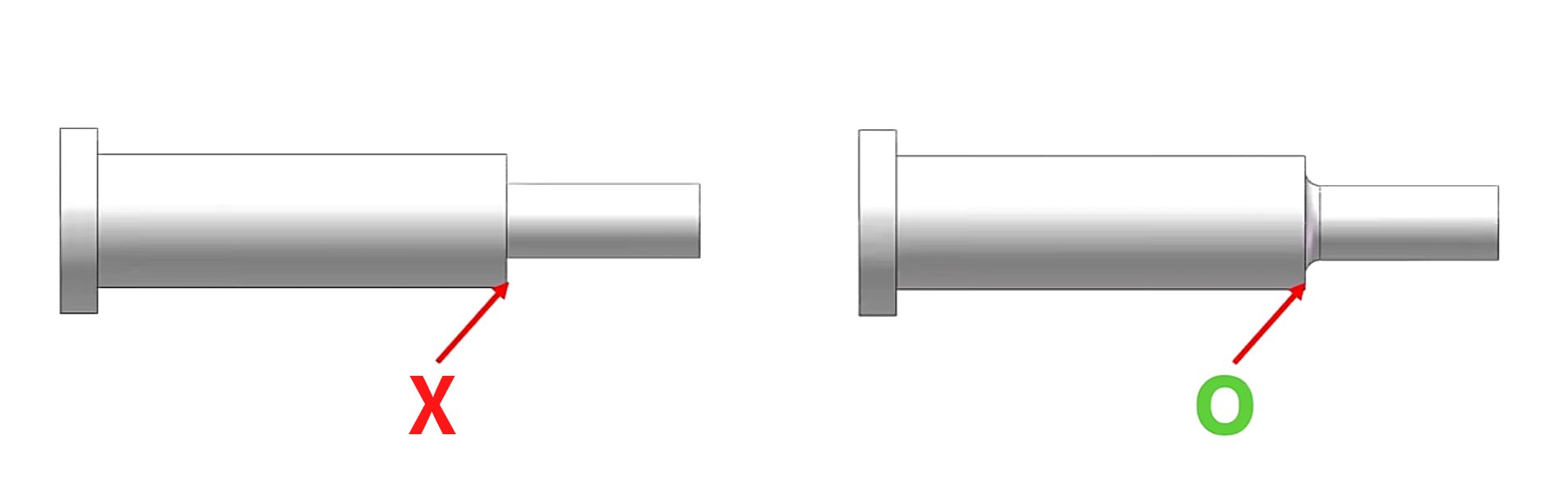

4.Relieve Internal Stress & Enhance Strength

Add transition fillets to eliminate stress concentration during heat treatment and prevent deformation or fracture. Fillets on cantilevered parts improve structural strength.

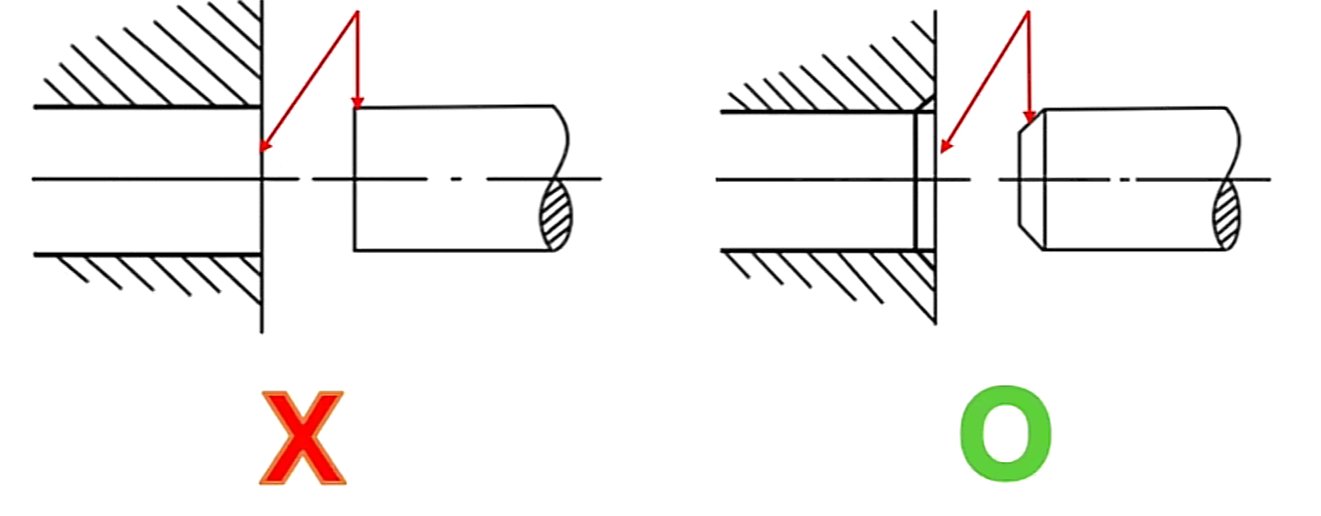

5.Guidance

Apply chamfers at product positioning and mating interfaces to improve ease of placement and assembly.

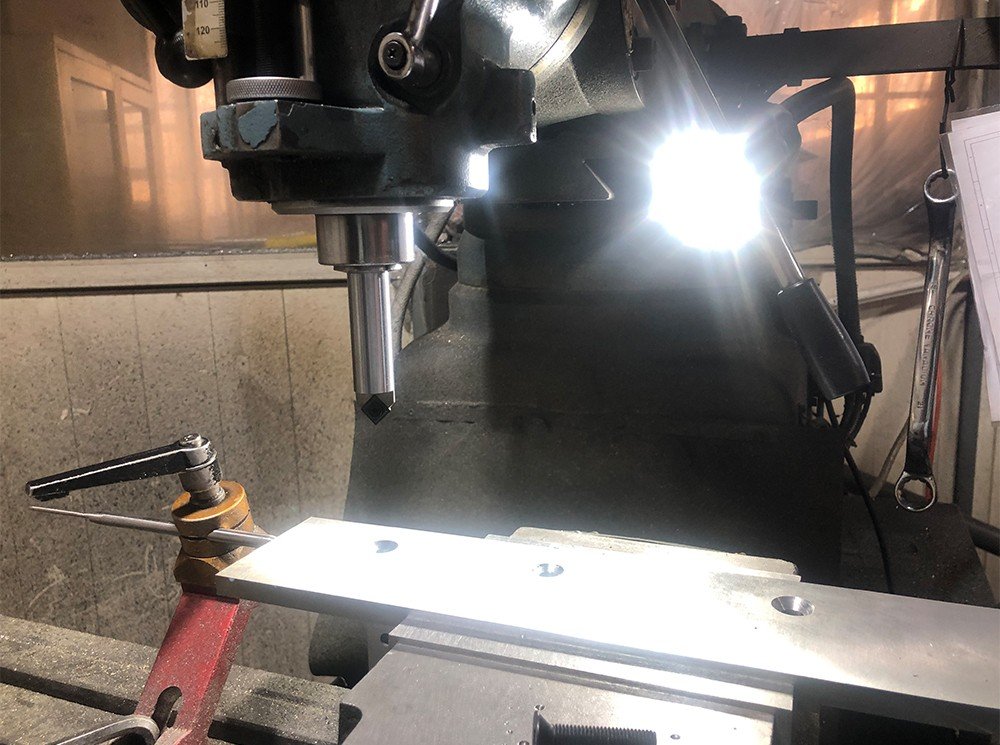

III. Common Chamfering Methods (Taking Round Holes as an Example)

· Basic drill bit for 45° chamfering

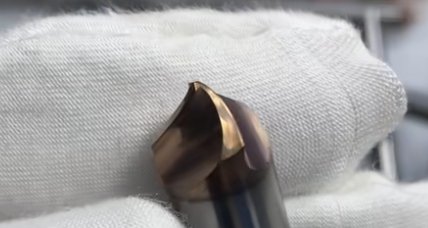

· Single-flute / three-flute chamfering tools

· Pneumatic grinding

· Specialized chamfering machines

The specific method is adjusted according to part geometry, chamfer location, and material.
