95% Material Utilization & 60% Cycle Reduction: How 3D Printing Transforms Mechanical Processing

I. Subverting Tradition: The "Additive Manufacturing" Revolution in Mechanical Processing

While traditional lathes still shape parts through "subtractive cutting", 3D printing (additive manufacturing) has rewritten the underlying rules of mechanical processing with its innovative logic of "layer-by-layer superposition". China's new national standard GB/T 45751-2025, implemented in 2025, clearly classifies 3D printing into eight process categories, marking the official transition of this technology from "laboratory prototyping" to "industrial mass production".

Compared with traditional processing, 3D printing brings three core transformations:

Material utilization rate jumps from less than 50% in traditional processing to over 95%, significantly reducing waste;

Production cycle is shortened by 60%-80%, enabling direct molding of complex parts without molds;

Design freedom breaks physical limitations, making complex structures such as hollow flow channels and lattice structures possible, which were unattainable with traditional processes.

II. Eight National Standard Processes: Precision Selection Guide for Mechanical Processing

The eight processes specified in the new national standard provide a clear technical selection framework for mechanical processing enterprises, among which four core processes have become mainstream in industrial applications:

In the aerospace field, for example, SpaceX's SuperDraco rocket engine nozzle adopts powder bed fusion technology, integrating more than 2,000 independent cooling channels into a single part, increasing thrust density by 35%—a feat completely impossible with traditional milling processes.

III. From Laboratory to Production Line: Performance Breakthroughs of Mechanical Parts

The reliability of 3D-printed mechanical parts has been verified through rigorous industrial tests:

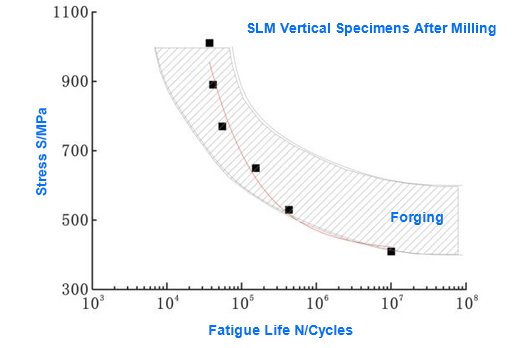

Strength Compliance: Siemens Energy's 3D-printed gas turbine blades passed 100 million cycles of load testing, with fatigue life 15% higher than that of traditional castings;

Precision Control: Fuel nozzles printed by Germany's EOS equipment have 200 microholes with diameter tolerance controlled within ±0.01mm;

Cost Optimization: GE Aviation's LEAP engine nozzle integrates 20 parts into one through 3D printing, reducing the cost per engine by 30,000 US dollars.

In the automotive manufacturing sector, Toyota's 3D-printed engine bracket developed in collaboration with SOLIZE reduces weight from 1.2kg to 0.4kg through topology optimization design, while reducing engine vibration by 22%, perfectly balancing lightweight requirements and structural strength.

IV. The Future of Mechanical Processing: Intelligent Integration and Sustainable Development

3D printing is deeply integrating with intelligent manufacturing, ushering in three major development trends:

AI-Driven Design: Autodesk's generative design platform can automatically generate optimal structures based on mechanical requirements. Boeing's satellite bracket achieved a 65% weight reduction through this technology, shortening the design cycle from 6 weeks to 72 hours;

Digital Twin Application: Siemens NX software real-time simulates printing stress distribution, dynamically adjusting parameters to reduce residual stress by 40%;

Green Manufacturing: Airbus uses 30% recycled titanium powder for 3D printing parts, reducing carbon emissions per unit by 55%, aligning with the environmental transformation needs of the mechanical processing industry.

V. Implementation Suggestions: Transformation Path for Mechanical Processing Enterprises

For mechanical processing enterprises planning to adopt 3D printing, a three-step promotion approach is recommended:

Pilot Application: Start with customized fixtures and small-batch complex parts to verify process feasibility;

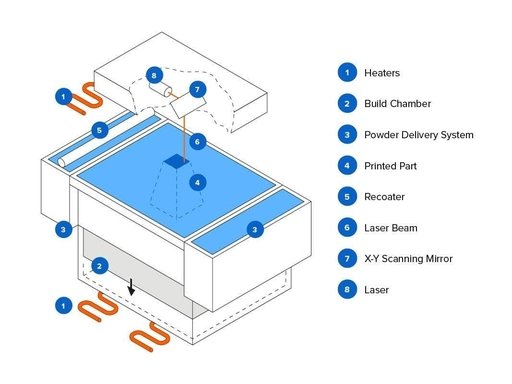

Technology Upgrade: For core components, select high-precision processes such as powder bed fusion and establish a material-parameter-performance database;

Ecological Integration: Connect to generative design and digital twin systems to achieve full-process intelligence from design and printing to inspection.

As the global 3D printing market is expected to exceed 114.5 billion US dollars by 2034, the mechanical processing industry is experiencing a paradigm shift from "subtractive" to "additive" manufacturing. This technology is not only an innovation in production tools but also a core engine reshaping product design, supply chain management, and cost structures.
