Minimalist Practical 3D Modeling Tips for Mechanical Design

Effective Error Avoidance: Minimalist Practical 3D Modeling Tips for Mechanical Design

The core of mechanical 3D modeling: stability, editability, machinability and drawing compatibility. Model lag, feature errors, crashes and unmanufacturable structures are mainly caused by non-standard modeling habits. This article summarizes practical engineer experience to effectively avoid rework.

1. Basic Standardization: Minimize Rework from the Source

1. Build Datums Before Modeling

Avoid sketching directly on default planes. Prioritize creating coordinate systems, datum planes and axes. Primary datums correspond to mounting surfaces, and secondary datums to positioning holes. All features based on standard datums ensure error-free dimension modification, assembly, tolerance inspection and drawing output.

2. Simplify Sketches and Avoid Redundancy

Reserve only basic extrusion and rotation profiles in sketches. Create chamfers, fillets, holes and drafts via feature commands. Keep sketches fully constrained without redundancy to prevent failures and ensure stable, editable models.

3. Parametric Modeling for Serial Parts

Link key dimensions of serialized parts with parametric associations. Updating a single parameter synchronizes the entire model, eliminating repeated modeling, unifying design standards and adapting to batch production.

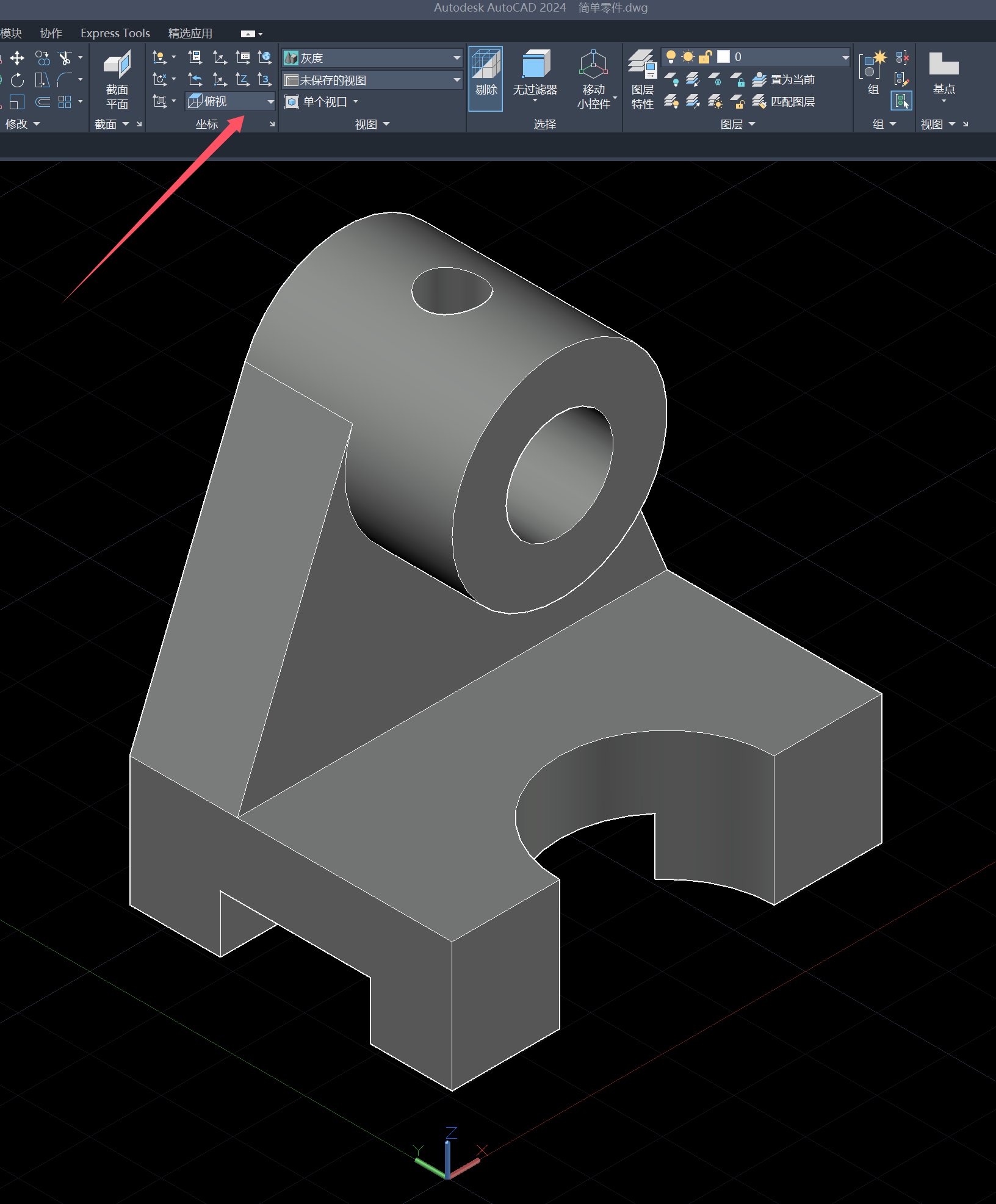

2. Part Modeling: Standardize Workflow for Machinability

1. Follow Standard Modeling Sequence

Optimal workflow: Extrusion/Rotation → Draft → Hole Creation → Chamfer & Fillet → Decorative Threads. Never add fillets before drilling to prevent hole offset and feature errors. Combine fillets with the same radius to simplify the model.

2. Use Native Hole Features

Avoid cut extrusion for holes. Built-in hole tools generate standard holes and threads, support automatic engineering drawing annotation, and improve BOM accuracy and part standardization.

3. Distinguish Between Machined and Plastic Parts

Add draft angles and check wall thickness for plastic parts to avoid injection molding defects. Metal parts require no draft, with a minimum internal fillet of R0.5 to match tool machining limits and ensure manufacturability.

4. Simplify Non-Critical Features

Hide tiny features that do not affect assembly, stress resistance or machining in 3D models, and mark them only in 2D drawings. This reduces file size, eliminates assembly lag and improves operating speed.

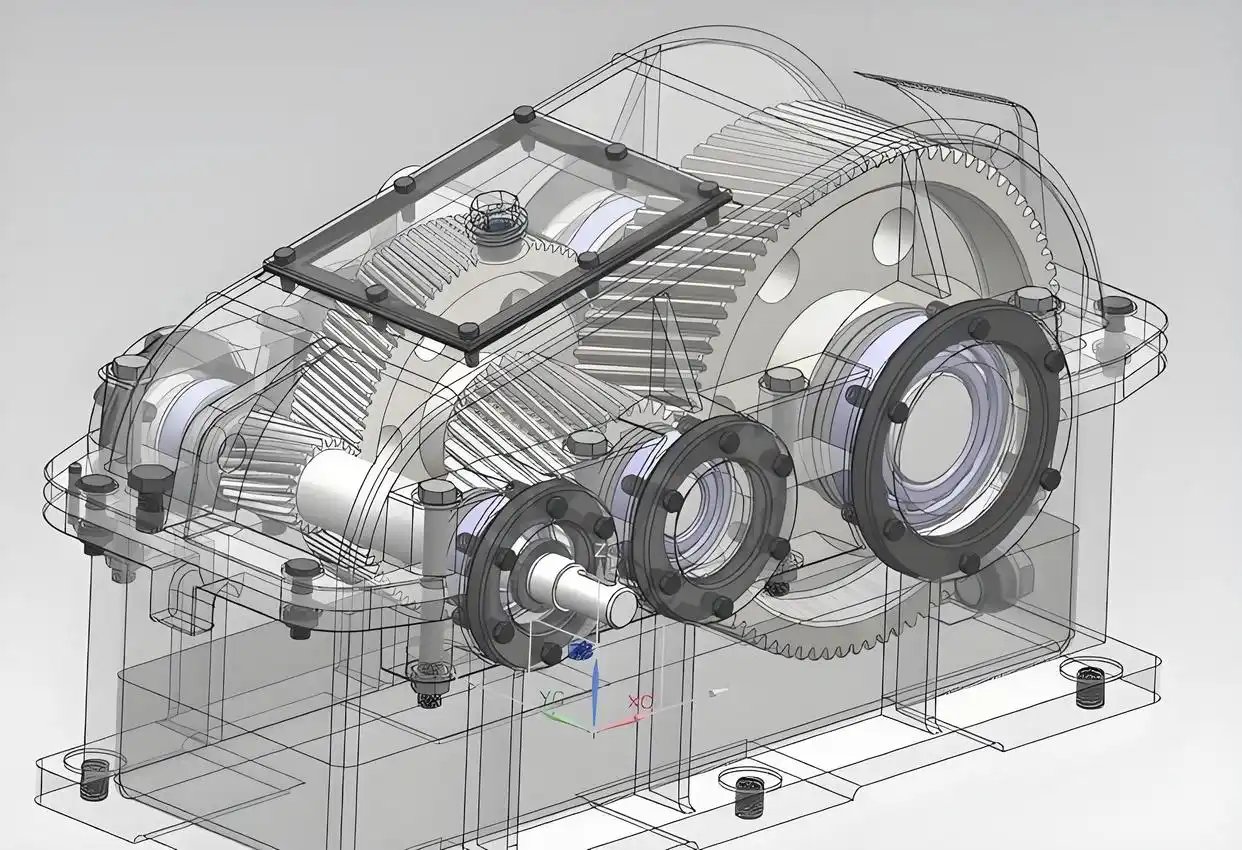

3. Assembly & Drawing: Improve Efficiency and Avoid Errors

1. Accurate and Controlled Assembly Constraints

Adopt four basic constraints: mating, alignment, coaxiality and distance. Avoid over-constraints and floating parts. Fix main structures first, then assemble auxiliary parts for clear hierarchy and stable iteration.

2. Lightweight Assembly Design

Suppress non-core standard and auxiliary parts when debugging large assemblies, retaining only main structures to greatly improve operation fluency.

3. Modeling Aligned with Drawing Standards

Standardize modeling details to achieve drawing-ready modeling. One-click generation of compliant drawings without secondary modification, eliminating model-drawing inconsistency and shortening the design cycle.

4. Three Standards for High-Quality Mechanical Models

1. Stability: No errors during dimension modification, no feature collapse, standardized sketch constraints.

2. Machinability: Compliant with processing technology with no unmanufacturable structures.

3. High Efficiency: Streamlined model with clear hierarchy, smooth assembly and fast drawing output.

3D modeling is an engineering tool rather than visual design. Standardize modeling habits to cut costs, reduce rework and meet factory production requirements.
